DigiBS
CNC Glazing Bead Saw
Description

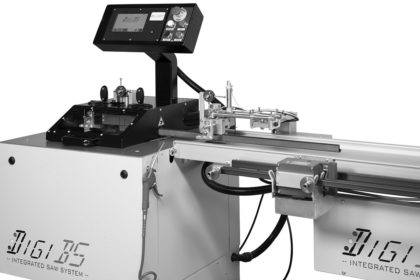

The Digi BS CNC Glazing Bead Saw is an ‘up-cut’-style saw with a blade diameter of 250mm.
Enquire Now Download BrochureFull Description
The BS system arrives with a glazing bead saw and a length stop.
Boasting the ability to process angles from 20 – 180° and to make arrow cuts, the Digi BS was specifically designed to process different glazing bead cuts – including uPVC. With quick-adjusting for blocks and a unique mechanical structure, this device from Digi is an ideal solution for fabricators looking to diversify or reduce waste during the glazing bead cutting process.
For additional information about the DigiBS CNC Glazing Bead Saw, including stock and delivery availability, please contact the Avantek team on sales@avantekmachinery.co.uk.
Product Features
- Quick adjusting device
- Angles from 20° to 160°
- Unique control system
- Integrated carriage positioning system
- Two outlet ports for dust extraction
- Fitted with a safety device
Technical Data
| Cutting Unit | |
| Kind of Cut | Up Cut Saw |
| Cutting Angles | CNC Controlled “arrow cut” from 20 to 160 |
| Blade | 250mm Diam. |
| Blade Motor | Triphase 1.3Kw 2800rpm |
| Positioning Unit (Length Stop) | |
| Minimum Piece Measurement | 180m |
| Maximum Piece Measurement | 3180mm |
| Carriage Movement | Stepper Motor, Magnetic Encoder Feedback |
| Accuracy | +/- 0.1mm |
| Positioning Speed | 50m/min |
| Electronic | |
| Control Unit | HMI 7″ Colour Touch + PLC Cards |
| Radio Interfaces | Integrated |
| USB for External Keyboard/Mouse/USB Flash Drive | Integrated |
